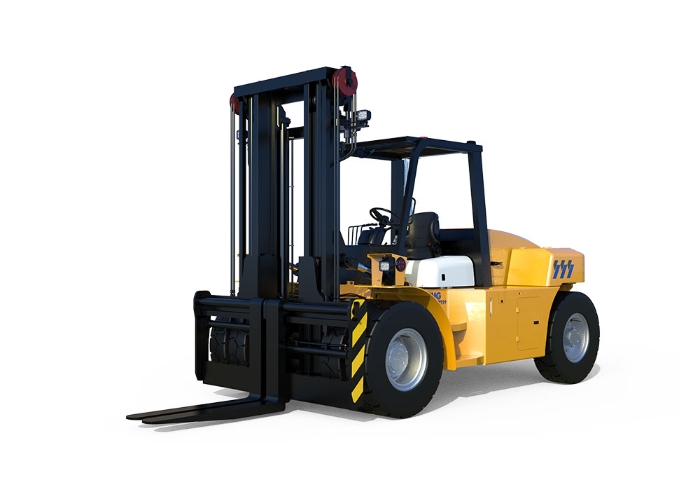

Counterbalanced forklift
XCF1206K
รายละเอียดสินค้า
Overall weight(kg) : 15220
Rated capacity(kg) : 12000
Maximum lifting height(mm) : 3000
Product FEATURE
Counter-balanced Forklift is Mainstream configuration.safe and reliable. comfortable operation. energy saving and high efficiency. convenient maintenance.Counter-balanced forklift truck is not only suitable for loading and unloading of goods and short distance transportation, but also can undertake the auxiliary maintenance, disassembly and installation of important equipment. It can also be used to handle steel coils, bulk materials, concrete, logs, 20 ‘containers and other materials with special tools.It applys to logistics areas such as freight yards, warehouses, ports, docks, railway and highway transfer stations
PARAMETERS
| Item | Unit | Specification |
|---|---|---|
| Overall Weight | kg | 15,220 |
| Rated Capacity | kg | 12,000 |
| Maximum Lifting Height | mm | 3,000 |
| Maximum Travelling Speed (Unloaded/Loaded) | km/h | 29 / 32 |
| Maximum Lifting Speed (Unloaded/Loaded) | mm/s | 365 / 390 |
| Maximum Gradeability (Loaded) | – | 0.25 |
| Dimensions without Fork | mm | 4460 × 2350 × 3170 |
| Wheel Base | mm | 3000 |
| Load Center | mm | 600 |
| Minimum Turning Radius | mm | 4210 |
| Type of Mast | – | Secondary Standard Type |
| Fork Dimensions | mm | 1370 × 175 × 88 |
| Fork Adjustment Range | mm | 420 – 2210 |
| Optional | – | / |
